WF35-320240XD#0SPW0-FC

Picture of WF35-320240XD#0SPW0-FC Picture of WF35-320240XD#0SPW0-FC
TFT 3.5'' 320x240, LCD Module, Interface RGB, High brightness 1000cd/m², Wide view angle (IPS), Super Extended Temperature, No touch

DESCRIPTION



3.5 inch IPS TFT which is featured with resolution 320x240 pixels. This IPS TFT-LCD module has built in with ST7272A driver IC; it supports 24-bit RGB interface. This module has brightness 1000 nits (typical value), aspect ratio 4:3, contrast ratio 800 (typical value), normally black LCD type, glare surface glass.

This 3.5 inch TFT-LCD is an IPS (In-Plane Switching) Panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical). Resistive Touch Panels (RTP) and Projected Capacitive Touch Panel (PCAP) optional. Operating temperatures from –30℃ to +85℃.

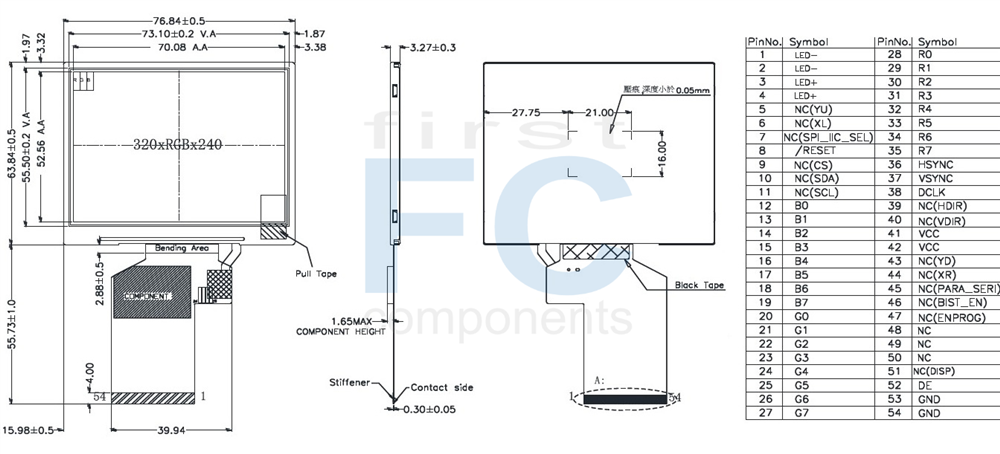

DRAWING



3.5" 320x240 IPS TFT Display - WF35XTYACDNN0

INTERFACE



PinSymbolFunction
1 LED- Power for LED backlight cathode
2 LED- Power for LED backlight cathode
3 LED+ Power for LED backlight anode
4 LED+ Power for LED backlight anode
5 NC(YU) No connect
6 NC(XL) No connect
7 NC(SPI_IIC_SEL) No connect
8 /RESET Hardware reset
9 NC(CS) No connect
10 NC(SDA) No connect
11 NC(SCL) No connect
12 B0 Data bus
13 B1 Data bus
14 B2 Data bus
15 B3 Data bus
16 B4 Data bus
17 B5 Data bus
18 B6 Data bus
19 B7 Data bus
20 G0 Data bus
21 G1 Data bus
22 G2 Data bus
23 G3 Data bus
24 G4 Data bus
25 G5 Data bus
26 G6 Data bus
27 G7 Data bus
28 R0 Data bus
29 R1 Data bus
30 R2 Data bus
31 R3 Data bus
32 R4 Data bus
33 R5 Data bus
34 R6 Data bus
35 R7 Data bus
36 HSYNC Horizontal sync signal, default is negative polarity.
37 VSYNC Vertical sync signal, default is negative polarity.
38 DCLK Dot-clock signal and oscillator source
39 NC(HDIR) No connect
40 NC(VDIR) No connect
41 VCC Power Supply
42 VCC Power Supply
43 NC(YD) No connect
44 NC(XR) No connect
45 NC(PARA_SERI) No connect
46 NC(BIST_EN) No connect
47 NC(ENPROG) No connect
48 NC No connect
49 NC No connect
50 NC No connect
51 NC(DISP) No connect
52 DE Data input enable. Display access is enabled when DE is “H”.
53 GND Ground
54 GND Ground
SKU: WF35-320240XD#0SPW0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€27.00
€21.60
€18.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€27.00 excl tax

DESCRIPTION



3.5 inch IPS TFT which is featured with resolution 320x240 pixels. This IPS TFT-LCD module has built in with ST7272A driver IC; it supports 24-bit RGB interface. This module has brightness 1000 nits (typical value), aspect ratio 4:3, contrast ratio 800 (typical value), normally black LCD type, glare surface glass.

This 3.5 inch TFT-LCD is an IPS (In-Plane Switching) Panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical). Resistive Touch Panels (RTP) and Projected Capacitive Touch Panel (PCAP) optional. Operating temperatures from –30℃ to +85℃.



DRAWING



3.5" 320x240 IPS TFT Display - WF35XTYACDNN0

INTERFACE



PinSymbolFunction
1 LED- Power for LED backlight cathode
2 LED- Power for LED backlight cathode
3 LED+ Power for LED backlight anode
4 LED+ Power for LED backlight anode
5 NC(YU) No connect
6 NC(XL) No connect
7 NC(SPI_IIC_SEL) No connect
8 /RESET Hardware reset
9 NC(CS) No connect
10 NC(SDA) No connect
11 NC(SCL) No connect
12 B0 Data bus
13 B1 Data bus
14 B2 Data bus
15 B3 Data bus
16 B4 Data bus
17 B5 Data bus
18 B6 Data bus
19 B7 Data bus
20 G0 Data bus
21 G1 Data bus
22 G2 Data bus
23 G3 Data bus
24 G4 Data bus
25 G5 Data bus
26 G6 Data bus
27 G7 Data bus
28 R0 Data bus
29 R1 Data bus
30 R2 Data bus
31 R3 Data bus
32 R4 Data bus
33 R5 Data bus
34 R6 Data bus
35 R7 Data bus
36 HSYNC Horizontal sync signal, default is negative polarity.
37 VSYNC Vertical sync signal, default is negative polarity.
38 DCLK Dot-clock signal and oscillator source
39 NC(HDIR) No connect
40 NC(VDIR) No connect
41 VCC Power Supply
42 VCC Power Supply
43 NC(YD) No connect
44 NC(XR) No connect
45 NC(PARA_SERI) No connect
46 NC(BIST_EN) No connect
47 NC(ENPROG) No connect
48 NC No connect
49 NC No connect
50 NC No connect
51 NC(DISP) No connect
52 DE Data input enable. Display access is enabled when DE is “H”.
53 GND Ground
54 GND Ground
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~85
Display Connection FPC per ZIF Connector
Pin Nr. 54
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
