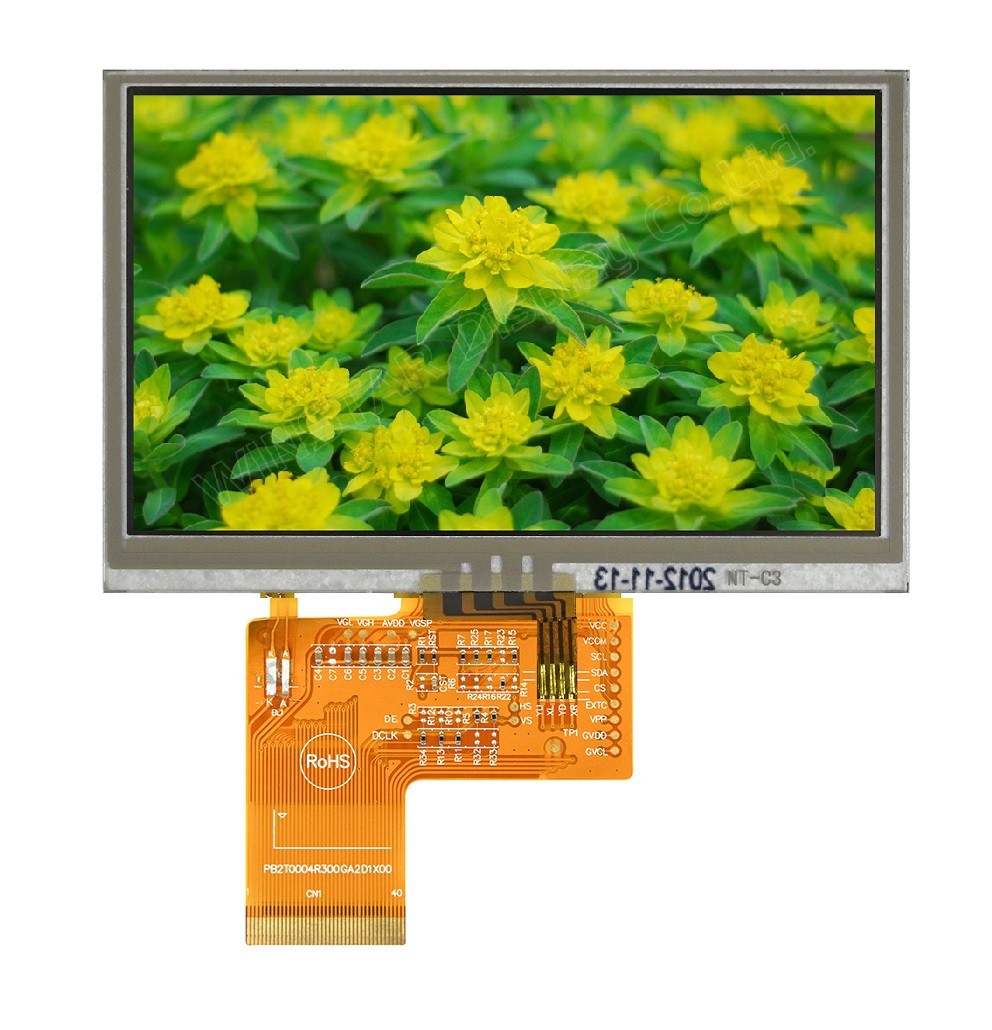

WF43-480272UD#A01-FC

TFT 4.3'' 480x272, LCD Module, Interface RGB, Resistive touch panel, Default Data Enable, G B/L 50K hours lifetime

DESCRIPTION



4.3" Resistive touch panel TFT display with resolution 480x272 pixels. This TFT module is built in with Driver IC ST7282-G4-1L; it supports 24-bit RGB interface; 3.3V (typical value) power supply for Voltage (VDD); it's having Anti-Glare surface panel, View Direction 12 o'clock, Gray scale inversion 6 o'clock, and 16:9 aspect ratio. This TFT LCD 4.3" have competitive price advantage. B/L 50K hours lifetime

This module has brightness of 500 ~ 600 cd/m2. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

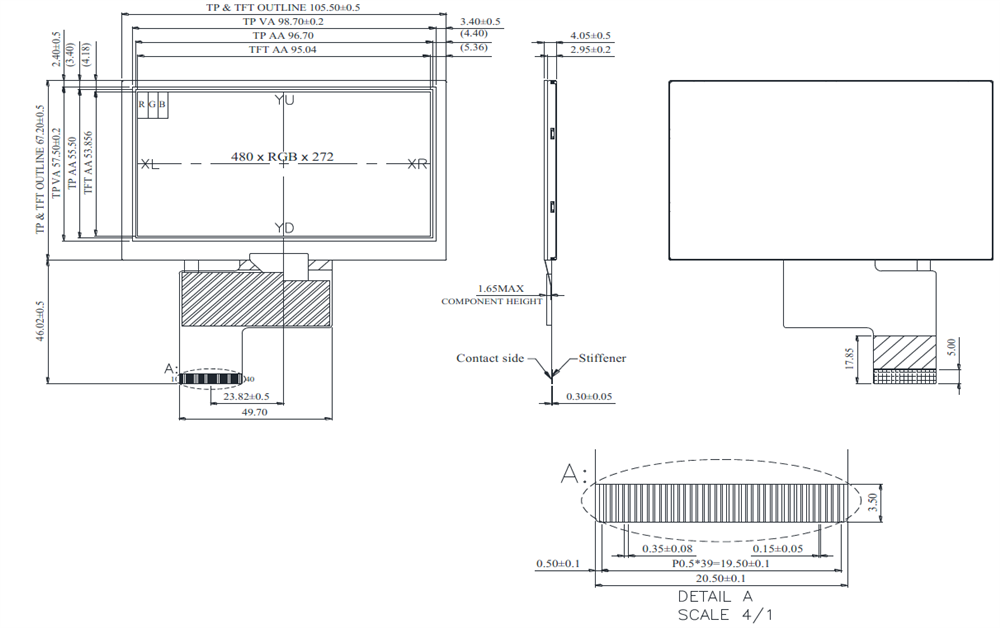

DRAWING







INTERFACE



PinSymbolFunction
1 LED- Power for LED backlight cathode
2 LED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock
31 DISP Display on/off
32 NC No connection
33 NC No connection
34 DE Data Enable
35 NC No connection
36 GND Power ground
37 XR Right electrode
38 YD Bottom electrode
39 XL Left electrode
40 YU Top electrode
SKU: WF43-480272UD#A01-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
50+
100+
300+
500+
Price
€25.00
€20.00
€18.30
€16.80
€15.80
€13.80
€13.40

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€25.00 excl tax

DESCRIPTION



4.3" Resistive touch panel TFT display with resolution 480x272 pixels. This TFT module is built in with Driver IC ST7282-G4-1L; it supports 24-bit RGB interface; 3.3V (typical value) power supply for Voltage (VDD); it's having Anti-Glare surface panel, View Direction 12 o'clock, Gray scale inversion 6 o'clock, and 16:9 aspect ratio. This TFT LCD 4.3" have competitive price advantage. B/L 50K hours lifetime

This module has brightness of 500 ~ 600 cd/m2. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.



DRAWING







INTERFACE



PinSymbolFunction
1 LED- Power for LED backlight cathode
2 LED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock
31 DISP Display on/off
32 NC No connection
33 NC No connection
34 DE Data Enable
35 NC No connection
36 GND Power ground
37 XR Right electrode
38 YD Bottom electrode
39 XL Left electrode
40 YU Top electrode
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.86
Color Full Color
Interface RGB
Built-in Controller No
View Angle 12H
Brightness (cd/m²) 350
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
