WF43-480272W8#0P5-FC

Picture of WF43-480272W8#0P5-FC Picture of WF43-480272W8#0P5-FC
TFT 4.3" 480x272, LCD + IC Controller, Interface MCU (Parallel) IC SSD1963 (8bit) + Mounting frame, Wide view angle (IPS), 350cd/m², Resistive touch panel



DESCRIPTION

WF43-480272W8#0P5-FC is a 4.3 inch Resistive Touch TFT Display with Controller Board. The module has 480x272 pixels resolution and 350 cd/m2 brightness. It uses an IPS screen to offer wider viewing angles. WF43-480272W8#0P5-FC is equipped with an SSD1963 controller IC, supporting 8080 MCU 8bit interface. The module dimension is 106.7x 83.98 mm, and its active area is 95.04 x 53.86 mm. The supply voltage for analog ranges from 3.0V to 3.6V; the typical value is 3.3V.

The WF43-480272W8#0P5-FC module can operate at temperatures from -20°C to +70°C; its storage temperatures range from -30°C to +80°C.

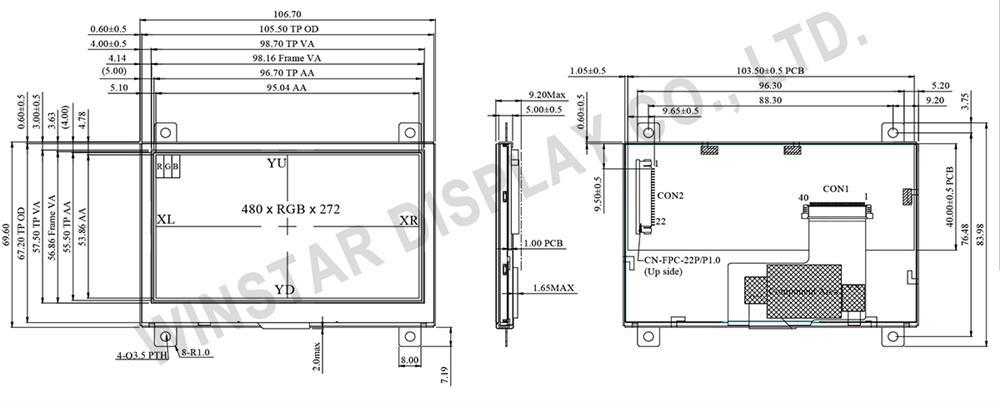

DRAWING

4.3 inch IPS 480x272 RTP with Controller Board, Frame - WF43WTYBEDAT0



SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 GND System round pin of the IC. Connect to system ground.
2 VDD Power Supply
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15 CS Chip select
16 RESET Hardware reset
17 NC No connection
18 XR Right electrode
19 DISP_ON Display control H: On \ L:Off
20 YD Bottom electrode
21 XL Left electrode
22 YU Top electrode



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272(TFT) dots
Module dimension 106.7x 83.98 x 9.2 mm
Active Area (AA) 95.04 x 53.86 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 16:9
Backlight Type LED, Normally White
Controller IC SSD1963
Interface Digital 8080 family MPU 8bit/16bit
Touch Screen Resistive Touch Panel (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VDD 3.0 3.3 3.6 V
Supply Current For LCM IDD - 270 405 mA


LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current - - 20 - mA
Power Consumption - 540 640 680 mW
LED voltage VLED+ 27 32 34 V
LED Life Time - - 50,000 - Hr

SKU: WF43-480272W8#0P5-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€54.70
€45.60
€39.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€54.70 excl tax



DESCRIPTION

WF43-480272W8#0P5-FC is a 4.3 inch Resistive Touch TFT Display with Controller Board. The module has 480x272 pixels resolution and 350 cd/m2 brightness. It uses an IPS screen to offer wider viewing angles. WF43-480272W8#0P5-FC is equipped with an SSD1963 controller IC, supporting 8080 MCU 8bit interface. The module dimension is 106.7x 83.98 mm, and its active area is 95.04 x 53.86 mm. The supply voltage for analog ranges from 3.0V to 3.6V; the typical value is 3.3V.

The WF43-480272W8#0P5-FC module can operate at temperatures from -20°C to +70°C; its storage temperatures range from -30°C to +80°C.



DRAWING

4.3 inch IPS 480x272 RTP with Controller Board, Frame - WF43WTYBEDAT0



SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 GND System round pin of the IC. Connect to system ground.
2 VDD Power Supply
3 BL_E Backlight control signal , H: On \ L: Off
4 D/C Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15 CS Chip select
16 RESET Hardware reset
17 NC No connection
18 XR Right electrode
19 DISP_ON Display control H: On \ L:Off
20 YD Bottom electrode
21 XL Left electrode
22 YU Top electrode



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272(TFT) dots
Module dimension 106.7x 83.98 x 9.2 mm
Active Area (AA) 95.04 x 53.86 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 16:9
Backlight Type LED, Normally White
Controller IC SSD1963
Interface Digital 8080 family MPU 8bit/16bit
Touch Screen Resistive Touch Panel (RTP)
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VDD 3.0 3.3 3.6 V
Supply Current For LCM IDD - 270 405 mA


LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current - - 20 - mA
Power Consumption - 540 640 680 mW
LED voltage VLED+ 27 32 34 V
LED Life Time - - 50,000 - Hr

Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface MCU (Parallel)
Display IC SSD1963
View Angle IPS
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface MCU (Parallel)
Display IC SSD1963
View Angle IPS
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
