WF43-480272WD#0SPW0-FC

TFT 4.3'' 480x272, LCD Module, Interface RGB, High Brightness 1000cd/m², Wide view angle (IPS), Super Extended Temperature, No touch, Default HSYNC-VSYNC

DESCRIPTION



High Brightness 4.3 inch wide view angle IPS TFT LCD module 480x272 pixels. This TFT model is built in with SC7283 driver IC, it supports 24-bit RGB interface, brightness 1000 nits (typical value). Resistive Touch Panels (RTP) and Projected Capacitive Touch Panel (PCAP) optional.

This 4.3” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The supply voltage for LCM (VCC) is from 3.0V to 3.6V, Glare surface glass, aspect ratio 16:9, contrast ratio 800 (typical value). Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.

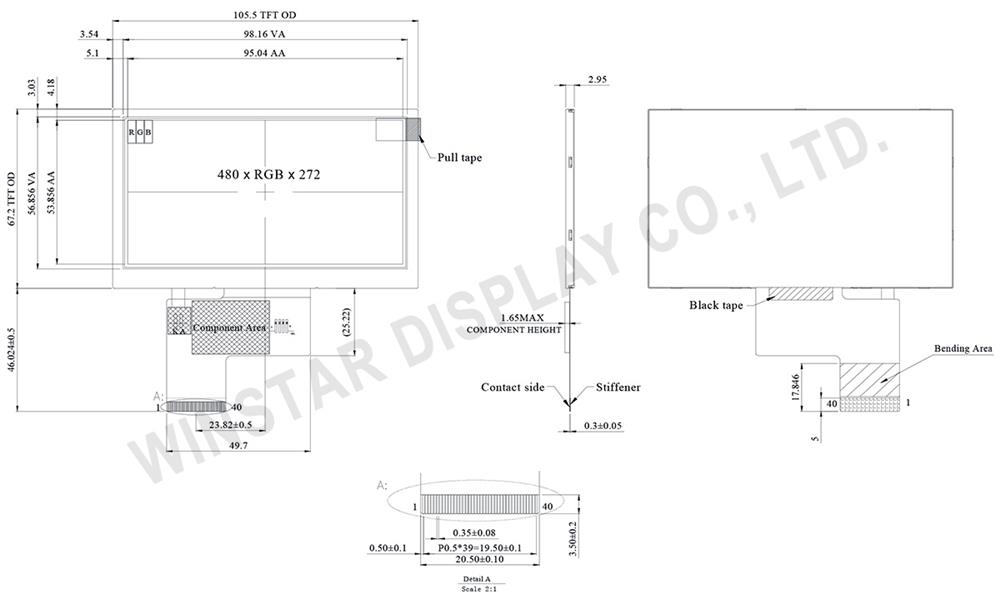

DRAWING

4.3" IPS Sunlight Readable Display TFT 480x272 - WF43WSWAEDNN0

INTERFACE

PinSymbolFunction
1 LED- Power for LED backlight cathode
2 LED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data
13 G0 Green data
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data
21 B0 Blue data
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data
29 GND Power ground
30 CLK Pixel clock input pin
31 DISP DISP sets the display mode.
VDLKPOLFunction Description
L VSYNC polarity: positive
H YSNC polarity: negative
32 HSYNC Horizontal sync signal, default is negative polarity.
33 VSYNC Vertical sync signal, default is negative polarity.
34 DE Data input enable.
35 NC No connection
36 GND Power ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection
SKU: WF43-480272WD#0SPW0-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€21.90
€17.50
€15.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€21.90 excl tax

DESCRIPTION



High Brightness 4.3 inch wide view angle IPS TFT LCD module 480x272 pixels. This TFT model is built in with SC7283 driver IC, it supports 24-bit RGB interface, brightness 1000 nits (typical value). Resistive Touch Panels (RTP) and Projected Capacitive Touch Panel (PCAP) optional.

This 4.3” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The supply voltage for LCM (VCC) is from 3.0V to 3.6V, Glare surface glass, aspect ratio 16:9, contrast ratio 800 (typical value). Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.



DRAWING

4.3" IPS Sunlight Readable Display TFT 480x272 - WF43WSWAEDNN0

INTERFACE

PinSymbolFunction
1 LED- Power for LED backlight cathode
2 LED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data
13 G0 Green data
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data
21 B0 Blue data
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data
29 GND Power ground
30 CLK Pixel clock input pin
31 DISP DISP sets the display mode.
VDLKPOLFunction Description
L VSYNC polarity: positive
H YSNC polarity: negative
32 HSYNC Horizontal sync signal, default is negative polarity.
33 VSYNC Vertical sync signal, default is negative polarity.
34 DE Data input enable.
35 NC No connection
36 GND Power ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Interface RGB
Built-in Controller No
View Angle IPS
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Interface RGB
Built-in Controller No
View Angle IPS
Brightness Range High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
