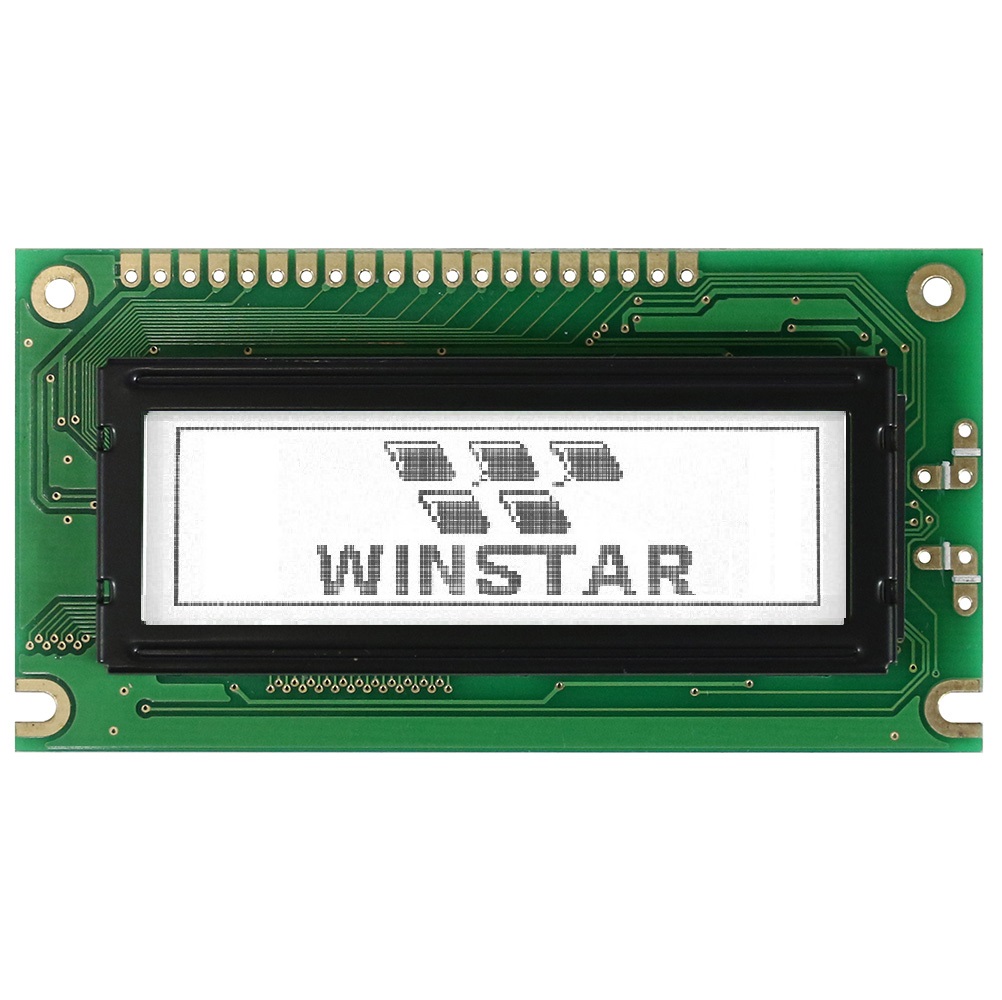

WG12232L5-TFH-VGB#

Graphic LCD 2.2'' 122x32, B/L white, FSTN white pos, COB, 5V, Interface 6800, 6 O'clock, VNEG

DESCRIPTION



WG12232L is a monochrome 122x32 graphic LCD display module which is having the same mechanical size as WG12232A. This 122x32 graphic LCD display is built in with ST7920 controller IC which supports Traditional Chinese and Simplified Chinese Font.  WG12232L supports 6800 8-bit parallel and SPI interface.  This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

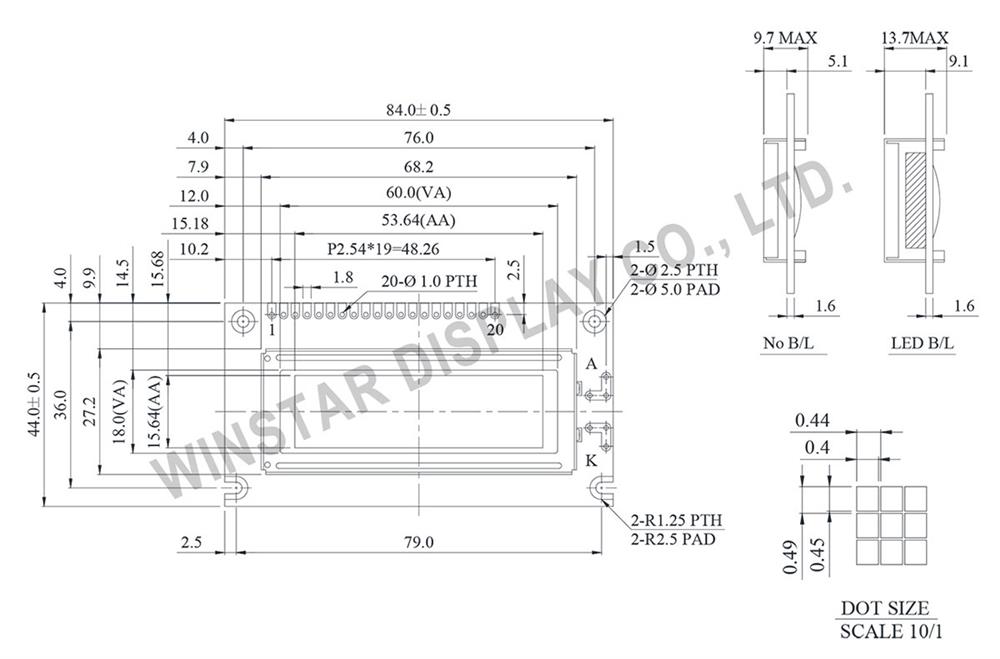

DRAWING

Winstar WG12232L - LCD Display Graphic 122x32

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction  select signal
5 Vout Positive Voltage output
6~7 NC No connection
8 E Enable signal
9 R/W Read/Write select signal
10~17 DB0~DB7 Data bus line
18 /RES Controller reset signal, Active Low
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 84.0 × 44.0 mm
Viewing Area 60.0 × 18.0 mm
Mounting Hole 79.0 × 36.0 mm
Dot Pitch 0.44 × 0.49 mm
Dot Size 0.40 × 0.45 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VO-VSS 4.50 V


SKU: WG12232L5-TFH-VGB#
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€13.40
€9.80
€8.10
€7.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€13.40 excl tax

DESCRIPTION



WG12232L is a monochrome 122x32 graphic LCD display module which is having the same mechanical size as WG12232A. This 122x32 graphic LCD display is built in with ST7920 controller IC which supports Traditional Chinese and Simplified Chinese Font.  WG12232L supports 6800 8-bit parallel and SPI interface.  This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

Winstar WG12232L - LCD Display Graphic 122x32

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction  select signal
5 Vout Positive Voltage output
6~7 NC No connection
8 E Enable signal
9 R/W Read/Write select signal
10~17 DB0~DB7 Data bus line
18 /RES Controller reset signal, Active Low
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 84.0 × 44.0 mm
Viewing Area 60.0 × 18.0 mm
Mounting Hole 79.0 × 36.0 mm
Dot Pitch 0.44 × 0.49 mm
Dot Size 0.40 × 0.45 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VO-VSS 4.50 V


Products specifications
Brand Winstar
Size 2.2"
Resolution 122x32
Active Area (mm) 53.64x15.64
Dot Size 0.40x0.45
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC Controller ST7920
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.2"
Resolution 122x32
Active Area (mm) 53.64x15.64
Dot Size 0.40x0.45
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC Controller ST7920
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
