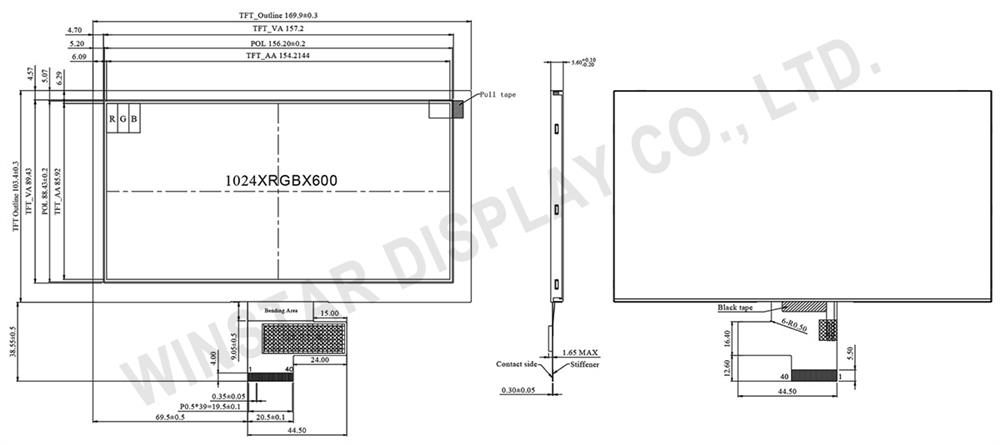

Landscape 7 inch IPS TFT High Brightness module, with resolution 1024x600 pixels. It is built in with ST5021 and ST5651 driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 1100 nits (typical value), aspect ratio 16:9, Anti-Glare surface glass, normally black, transmissive LCD type. This 7" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value).
The supply voltage (VDD) is from 3.0V to 3.6V, typical value 3.3V. Operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. We also offer Resistive Touch Panels (RTP), Projected Capacitive Touch Panel (PCAP) optional.
LCM PIN Definition
