WL0F0007000A8GAADSA05-FC

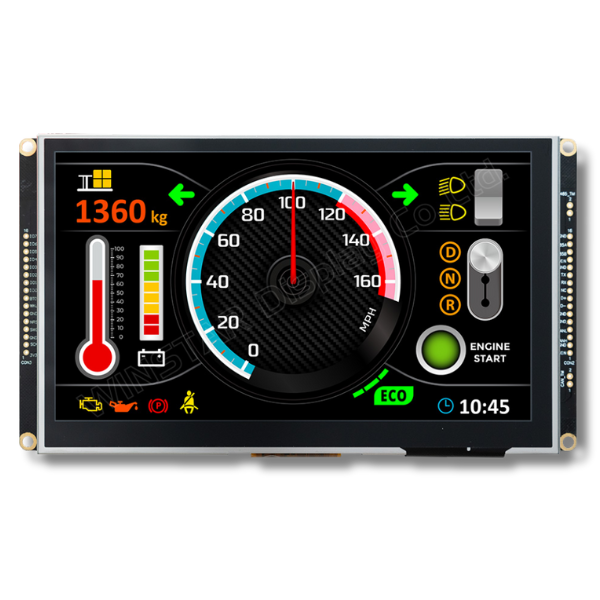

TFT 7" 1024x600, CAN Bus interface with CUSTOMIZABLE CAN ID & GPIO Support, 32MB Flash Memory, 450cd/m², Wide View Angle (IPS), Capacitive touch panel (GG)

DESCRIPTION

Link to 'SMART GUI BUILDER' INTRODUCTION & VIDEO

WL0F0007000A8GAADSA05-FC is a 7 inch Smart Display CAN series TFT which is defined as a slave device, that is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects. WL0F0007000A8GAADSA05-FC is integrated with a standard TFT module WF70-1024600A8L#BP3-FC and 4-layers PCBA with built-in firmware. This 7 inch Smart Display CAN series TFT is an easy-to-use product which allows customers to develop projects rapidly in cost-effective way. This 7" Smart Display can use computer with USB2CAN dongle, MCU or Raspberry Pi interface (PiCAN2) as HOST platform.

Smart Display products are designed with STMicroelectronics' (ST) controller which supports ST development tools like TouchGFX and STM32CubeIDE. You can also use ST tools to design WINSTAR Smart Display modules besides GUI builder.

TouchGFX: An advanced free-of-charge graphic software framework optimized for STM32 microcontrollers.
STM32CubeIDE: An advanced C/C++ development platform with peripheral configuration, code generation, code compilation, and debug features for STM32 microcontrollers and microprocessors.
STM32CubeMX: A graphical tool that allows a very easy configuration of STM32 microcontrollers, as well as the generation of the corresponding initialization C code for the Arm® Cortex®-M core or a partial Linux® Device Tree for Arm® Cortex®-A core, through a step-by-step process.
STM32CubeProg: An all-in-one multi-OS software tool for programming STM32 products. It provides an easy-to-use and efficient environment for reading, writing and verifying device memory through both the debug interface (JTAG and SWD) and the bootloader interface (UART, USB DFU, I2C, SPI, and CAN).

Below are the features of 7 inch smart display:

+12V power supply input with 8V to 35V dynamic range power input, the power consumption is around 6 Watt.
Self testing after booting function.
CAN bus communication interface.
Supports Custom CAN ID protocol, default baud rate at 250Kbps.
Built in 32MB external flash memory to store the font and Object Dictionary Data.
Supports projected capacitive touch screen (PCAP).
Embedded buzzer controlled by Master Device.
HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
GPIO PIN support with 3.3V TTL, max 5.5V tolerance
Design the UI without writing a line of code by Winstar GUI builder! (►Link to GUI Builder Introduction)
Designed with STM32F series MCU and Support STMicroelectronics' (ST) software development tools.

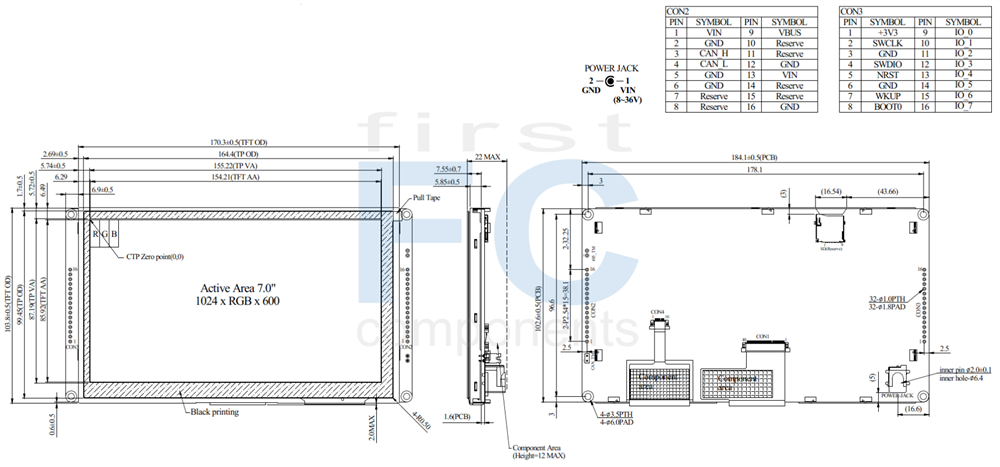

DRAWING

SPECIFICATIONS

General Specifications

Item	Standard Value	Unit
Operating voltage	8~35	Vdc
Communication Interface	CAN bus	--
MCU	STM32F746	N/A
Flash Memory	32	MB
SDRAM Frequency	100	MHz
LCD display size	7	inch
Dot Matrix	1024 x RGB x 600(TFT)	dot
Module dimension	184.1(W) x 103.8(H) x 22(D)	mm
Active area	154.2144 x 85.92	mm
Dot pitch	0.1506 x 0.1432	mm
Brightness	Min: 400; Typ: 450	cd/m2
LCD type	TFT, Normally Black, Transmissive
View Direction	85/85/85/85(IPS)
Aspect Ratio	16:9
Touch Panel	Projected Capacitive Touch Screen, PCAP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VCI	-	8	12	35	V
Supply Current	I(mA)	-	-	680	-	mA

BOM

Item	Description
LCM	WF70-1024600A8L#BP3-FC
PCBA	SV10007R00A8C00N0107

Interface Pin Function

CON2 definition:

Pin	Symbol	Function	Remark
1	VIN	Power supply VIN	Power
2	GND	Power supply GND input	GND
3	CAN_H	CAN bus D+	I/O
4	CAN_L	CAN bus D-	I/O
5	GND	Power supply GND input	Input
6	GND	Power supply GND input	Input
7	Reserve	__	_
8	Reserve	__	_
9	VBUS	_	_
10	Reserve	_	_
11	Reserve	_	_
12	GND	GND	GND
13	Reserve	_	_
14	Reserve	_	_
15	Reserve	_	_
16	GND	GND	GND

CON3 definition:

Pin	Symbol	Function	Remark
1	+3V3	3.3V power for SWD interface	_
2	SWCLK	CLK pin for SWD interface	Input
3	GND	GND for SWD interface	_
4	SWDIO	Data pin for SWD interface	I/O
5	NRST	Reset pin for SWD interface	Input
6	GND	Power GND	_
7	IO_8	(PA0) for system Resume from suspend	Input
8	BOOT0	Lo: Internal flash boot (Default) Hi: External flash boot	Input
9	IO_0	(PA5),I/O @3.3V	ADC,DAC,Timer, Event,I/O
10	IO_1	(PA6),I/O @3.3V	ADC,Timer, Event,I/O
11	IO_2	(PA7),I/O @3.3V	ADC,Timer, Event,I/O
12	IO_3	(PA8),I/O @3.3V	RST, Timer, Event,I/O
13	IO_4	(PC13),I/O @3.3V	RST, RTC TAMP1, SYS_WKUP,Event,I/O
14	IO_5	(PB11),I/O @3.3V	ADC,Timer, Event,I/O
15	IO_6	(PA15),I/O @3.3V	RST, Timer, Event,I/O
16	IO_7	(PD11),I/O @3.3V	RST, ADC, Event,I/O

Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register

Splash Screen

The default splash image is shown below.

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Acquisition of Displayed Data

Smart Display uses the Modbus protocol to get and send the data.

On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

Configuring the Display

Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days

The Smart Display is defined as a slave device, which is controlled by master device via RS-485 command to render display content on the display screen and return touch event data with protocol objects.

Example Screen Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Example Screen Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.
