NH1602BN002ML

Character LCD 3.8" 16x2, B/L white, STN blue neg, COB, Interface 6800, 6H, No Touch, Standard Temp., W/ Frame



DRAWING





SKU: NH1602BN002ML
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€9.30
€8.60
€7.30
€6.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€9.30 excl tax

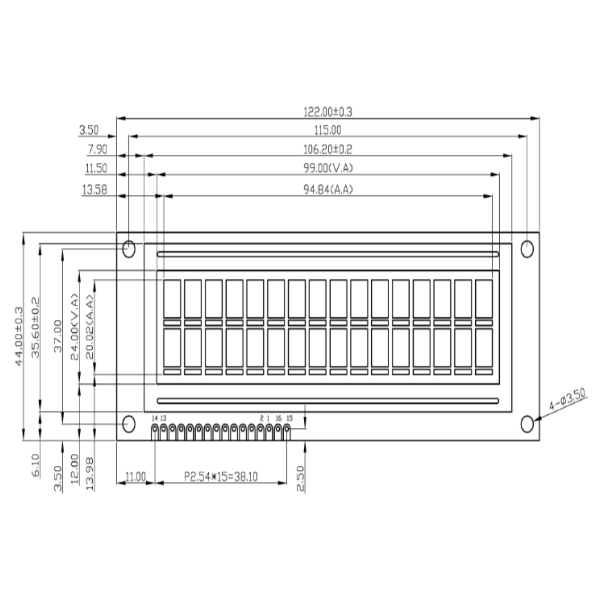

DRAWING





Products specifications
Brand Next Vision Display
Size 3.8"
Resolution 16x2
Active Area (mm) 94.84x20.00
Dot Size 0.92x1.10
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800
Display IC SPLC780D
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 3.8"
Resolution 16x2
Active Area (mm) 94.84x20.00
Dot Size 0.92x1.10
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800
Display IC SPLC780D
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
