WEG10016B#JP3N00100-FC

PMOLED 3.84'' Graphic 100x16, Blue color, COB, 3.3V, Interface 6800, WS0010-TX IC, Frame, Glare

DESCRIPTION

Monochrome Graphic OLED display module which has a very high contrast ratio with an extremely dark background versus the lit-up pixels on the display. This 3.84 inch monochrome 100x16 passive matrix OLED display module features a very wide viewing angle up to 175°. It is COB structure OLED, it is built in with WS0010-TX IC, default 6800 interface, optional for 8080 and SPI interface.

The supply voltage for logic is 5V, driver duty 1/16, its operating temperature is -40℃~+70℃; and storage temperature ranges are -40℃~+85℃.

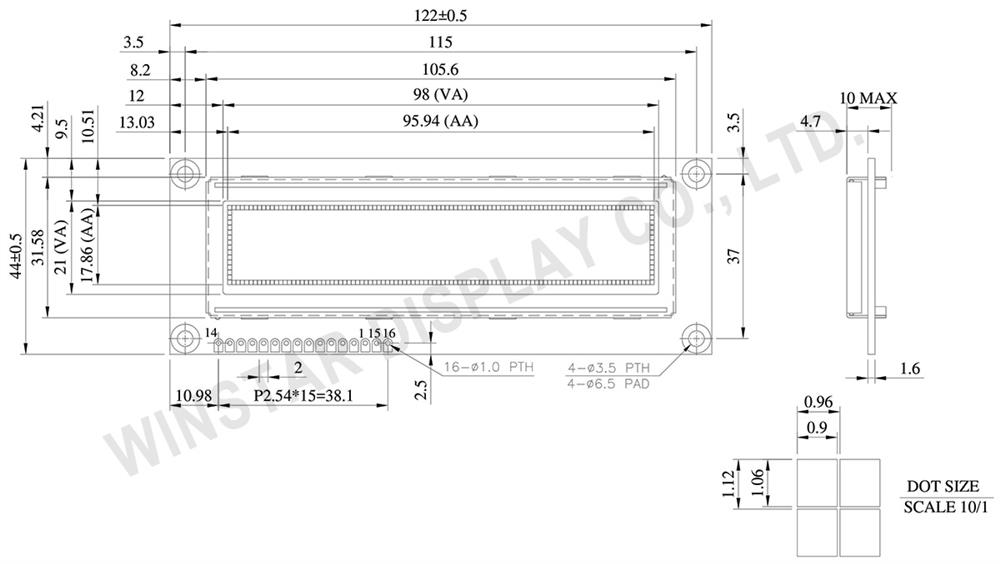

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	Ground
2	VDD	5.0V	Supply Voltage for logic
3	NC	－	－
4	RS	H/L	H: DATA, L: Instruction code
5	R/W	H/L	H: Read(Module→MPU) L: Write(MPU→Module)
6	E	H,H→L	Chip enable signal
7	DB0	H/L	Data bit 0
8	DB1	H/L	Data bit 1
9	DB2	H/L	Data bit 2
10	DB3	H/L	Data bit 3
11	DB4	H/L	Data bit 4
12	DB5	H/L	Data bit 5
13	DB6	H/L	Data bit 6
14	DB7	H/L	Data bit 7
15	NC	－	－
16	NC	－	－

Mechanical Data

Item	Dimension	Unit
Dot Matrix	100×16	Dots
Module dimension	122.0 × 44.0 × 10.0(MAX)	mm
View area	98.00 × 21.00	mm
Active area	95.94 × 17.86	mm
Dot size	0.90 × 1.06	mm
Dot pitch	0.96 × 1.12	mm
Panel Type	OLED , Monochrome
Duty	1/16
IC	WS0010-TX
Interface	6800 / 8080 / SPI
Size	3.84 inch

Absolute Maximum Ratings

Item	Symbol	Min	Max	Unit
Operating Temperature	TOP	-40	+70	°C
Storage Temperature	TST	-40	+85	°C
Supply Voltage For Logic	VDD-VSS	-0.3	5.3	V

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.8	5.0	5.3	V
Input High Volt.	VIH	－	0.8xVDD	－	VDD	V
Input Low Volt.	VIL	－	GND	－	0.2xVDD	V
Output High Volt.	VOH	IOH=-0.5mA	0.8xVDD	－	VDD	V
Output Low Volt.	VOL	IOL=0.5mA	GND	－	0.2xVDD	V
50% Check Board Operating Current	IDD	VDD=5V	－	50	70	mA
