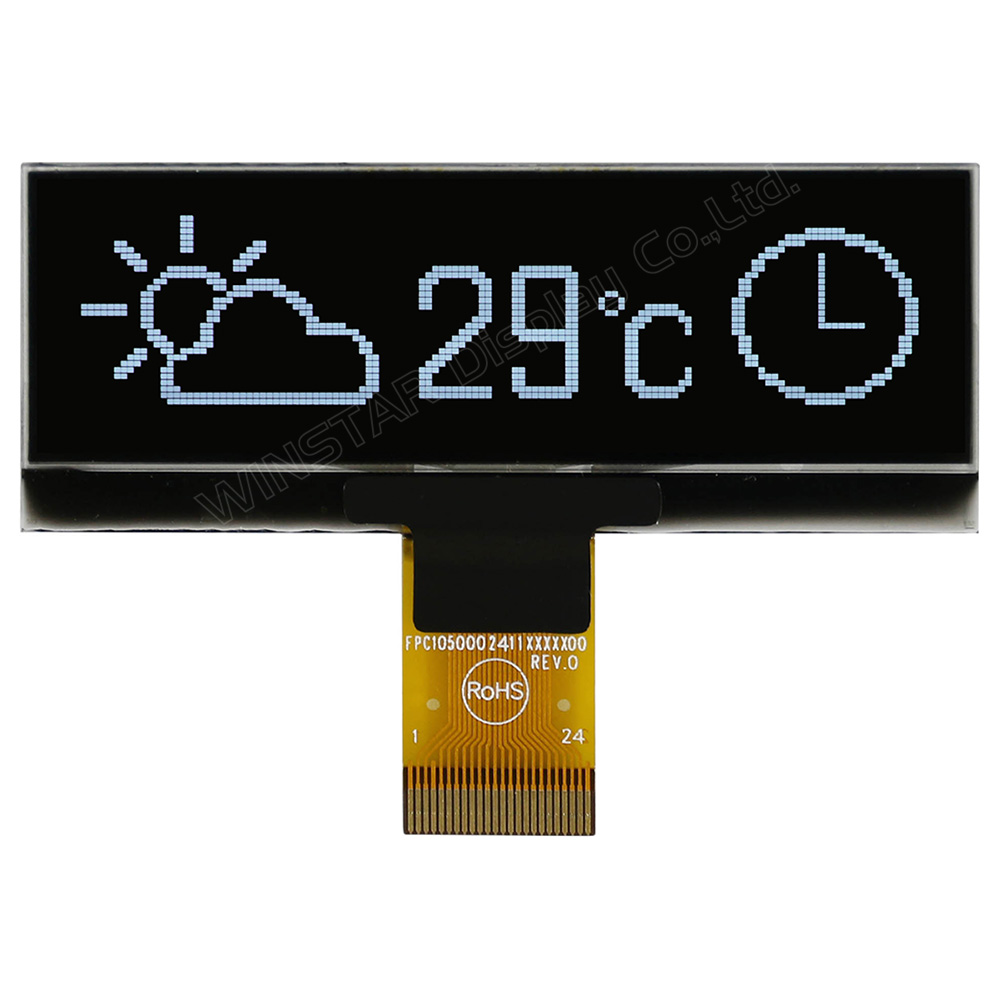

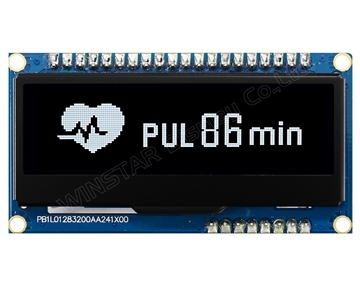

WEO12832W#A00-FC

PMOLED 2.22" Graphic 128x32, White color, COG, 3V, Interface 6800,8080,SPI,I2C, SSD1305 IC, Glare (FPC per ZIF Connector)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DESCRIPTION

Winstar 2.23" OLED built in with SSD1305 oled controller, it communicates via 6800/8080 8-bit parallel and I2C/4-wire serial interface. The nature of OLED technology lends itself to extremely suitable to be used in a variety of different applications. OLED 128x32 COG model ultra thin, lightweight and low power consumption which is great for handheld instruments, meters, smart grid, wearable device, IoT, etc.

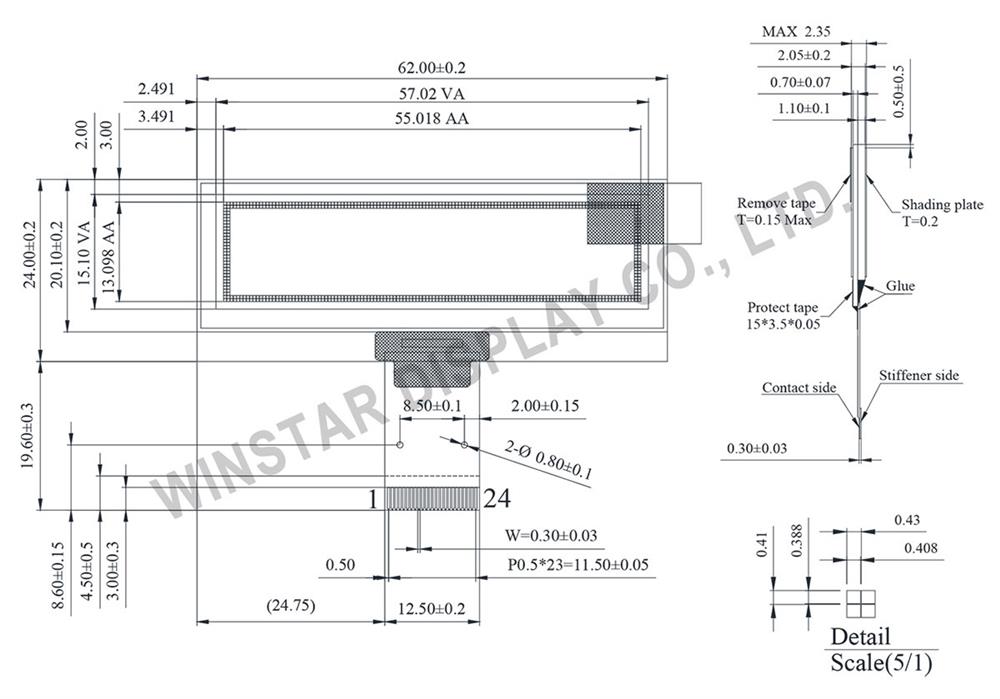

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	NC	No Connection
2	VLSS	Analog system ground pin
3	VSS	Ground Pin
4	NC	No Connection
5	VDD	Voltage for logic
6~7	BS1 ~BS2	Interface selection
8	CS#	Chip Select Pin
9	RES#	Reset Signal Pin
10	D/C#	Data/Command Control Pin
11	R/W#	Read/Write Control
12	E(RD#)	Chip Enable Signal
13~20	D0~D7	Data Bus
21	IREF	SEG Current Refer Pin
22	VCOMH	COM deselected level
23	VCC	Panel driving voltage
24	NC	No Connection
