WG160160A-YYH-VZ#

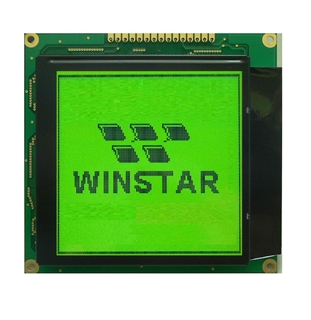

Graphic LCD 3.38'' 160x160, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, No controller, 6 O'clock, VNEG

DESCRIPTION

WG160160A is a monochrome graphic 160x160 LCD module which is having the module dimension of 89.28x85 mm and AA size of 60.76x60.76 mm. This WG160160A model is without controller on module. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.

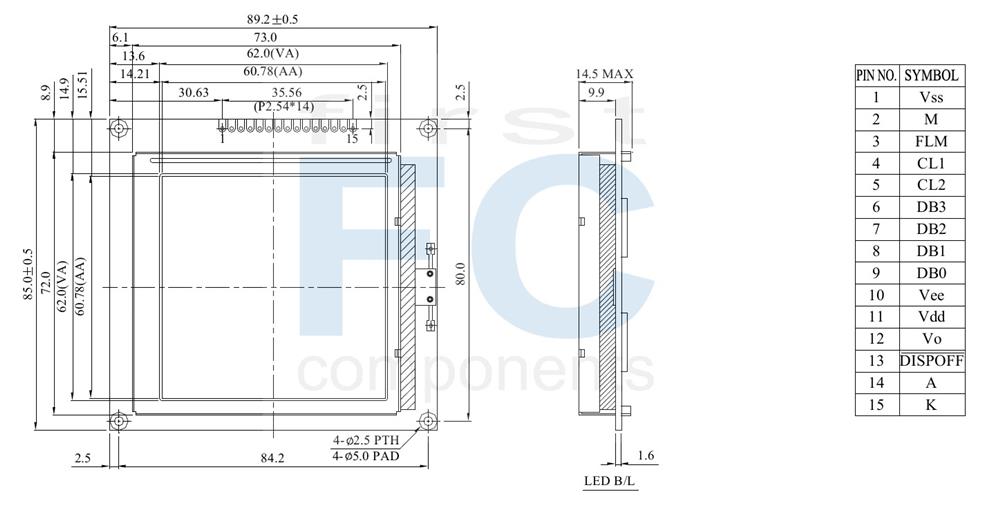

DRAWING

160x160 LCD, Graphic Module LCD 160x160 - WG160160A - Winstar Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 M Frame reverse signal(alternate signal)
3 FLM Scan start-up signal
4 CL1 Data latch pulse
5 CL2 Data shift pulse
6~9 DB3~DB0 Data bus line
10 VEE Negative Voltage Output
11 VDD Power supply for logic
12 VO Contrast Adjustment
13 DISP OFF Display off H:ON L:OFF
14 A Power supply for B/L +
15 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 89.2 × 85.0 mm
Viewing Area 62.0 × 62.0 mm
Mounting Hole 84.2 × 80.0 mm
Dot Pitch 0.38 × 0.38 mm
Dot Size 0.36 × 0.36 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 18.75 V


SKU: WG160160A-YYH-VZ#
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
Price
€39.00
€31.20
€30.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€39.00 excl tax

DESCRIPTION

WG160160A is a monochrome graphic 160x160 LCD module which is having the module dimension of 89.28x85 mm and AA size of 60.76x60.76 mm. This WG160160A model is without controller on module. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.


DRAWING

160x160 LCD, Graphic Module LCD 160x160 - WG160160A - Winstar Display

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 M Frame reverse signal(alternate signal)
3 FLM Scan start-up signal
4 CL1 Data latch pulse
5 CL2 Data shift pulse
6~9 DB3~DB0 Data bus line
10 VEE Negative Voltage Output
11 VDD Power supply for logic
12 VO Contrast Adjustment
13 DISP OFF Display off H:ON L:OFF
14 A Power supply for B/L +
15 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 89.2 × 85.0 mm
Viewing Area 62.0 × 62.0 mm
Mounting Hole 84.2 × 80.0 mm
Dot Pitch 0.38 × 0.38 mm
Dot Size 0.36 × 0.36 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 18.75 V


Products specifications
Brand Winstar
Size 3.38"
Resolution 160x160
Active Area (mm) 60.78x60.78
Dot Size 0.36x0.36
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface No controller
Display IC NT7086
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 15
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.38"
Resolution 160x160
Active Area (mm) 60.78x60.78
Dot Size 0.36x0.36
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface No controller
Display IC NT7086
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 15
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
