WH1202A-TMI-ETV#

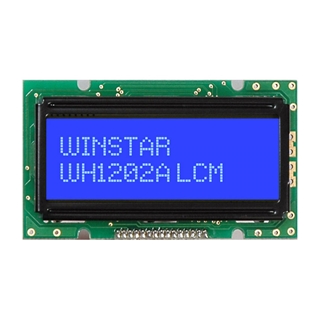

Character LCD 1.6'' 12x2, B/L white, STN blue neg, COB, 3V, Interface 6800, Font Eng/Eu, 6 O'clock

DESCRIPTION



WH1202A model is a 12 character by 2 line small LCD display which having the outline dimension of 55.7 x 32 mm, diagonal size 1.6 inch.  The WH1202A display LCD 12x 2 modules include positive mode with gray or yellow/green LCD and negative mode with blue LCD color options. These miniature LCD displays have different interfaces available, built in with ST7066 controller which default 6800 4/8-bit parallel interface, or optional SPI and I2C by using RW1063 IC.

There are three interface options for WH1202A series, details as below:
►WH1202A : 6800 interface (ST7066 IC)
►WH1202A1: SPI interface (RW1063 IC)
►WH1202A2: I2C interface (RW1063 IC)


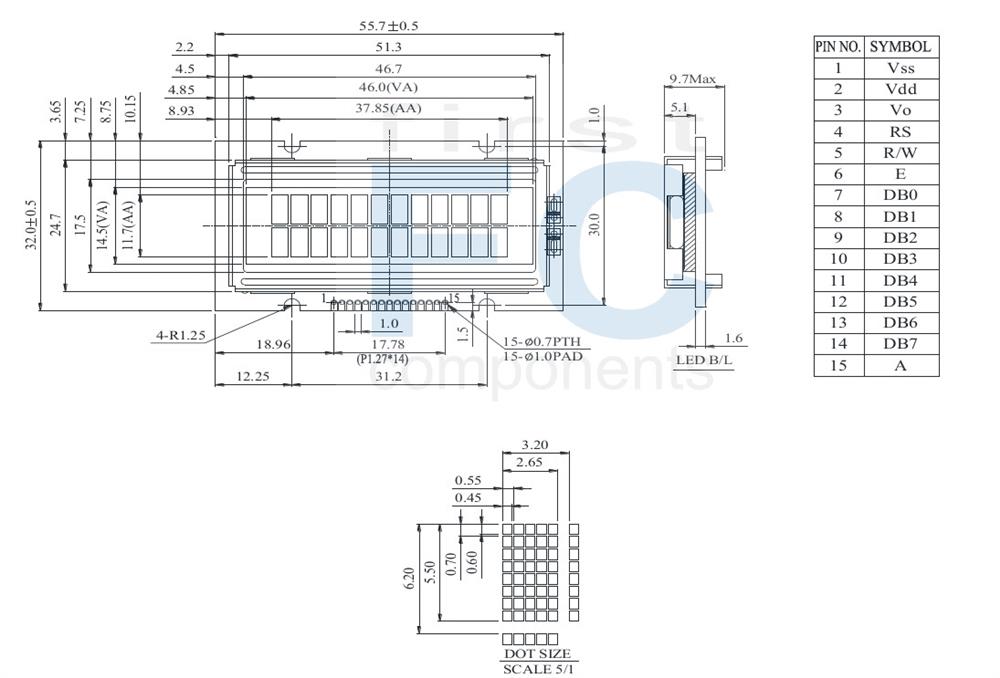

DRAWING

Display LCD 12x2, Small LCD Displays, Miniature LCD Display - WH1202A - Winstar

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Operating voltage for LCD
4 RS H: DATA, L: Instruction code
5 R/W H: Read   L: Write
6 E Chip enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +



Mechanical Data

ItemStandard ValueUnit
Module Dimension 55.7 × 32.0 mm
Viewing Area 46.0 × 14.5 mm
Mounting Hole 31.2 × 30.0 mm
Character Size 2.65 × 5.50 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.20 V



Display Character Address Code

Display Position12345678
DD RAM Address 00 01         0A 0B
DD RAM Address 40 41         4A 4B


SKU: WH1202A-TMI-ETV#
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
25+
Price
€7.60
€5.60
€4.80
€4.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€7.60 excl tax

DESCRIPTION



WH1202A model is a 12 character by 2 line small LCD display which having the outline dimension of 55.7 x 32 mm, diagonal size 1.6 inch.  The WH1202A display LCD 12x 2 modules include positive mode with gray or yellow/green LCD and negative mode with blue LCD color options. These miniature LCD displays have different interfaces available, built in with ST7066 controller which default 6800 4/8-bit parallel interface, or optional SPI and I2C by using RW1063 IC.

There are three interface options for WH1202A series, details as below:
►WH1202A : 6800 interface (ST7066 IC)
►WH1202A1: SPI interface (RW1063 IC)
►WH1202A2: I2C interface (RW1063 IC)


DRAWING

Display LCD 12x2, Small LCD Displays, Miniature LCD Display - WH1202A - Winstar

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Operating voltage for LCD
4 RS H: DATA, L: Instruction code
5 R/W H: Read   L: Write
6 E Chip enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +



Mechanical Data

ItemStandard ValueUnit
Module Dimension 55.7 × 32.0 mm
Viewing Area 46.0 × 14.5 mm
Mounting Hole 31.2 × 30.0 mm
Character Size 2.65 × 5.50 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.20 V



Display Character Address Code

Display Position12345678
DD RAM Address 00 01         0A 0B
DD RAM Address 40 41         4A 4B


Products specifications
Brand Winstar
Size 1.6"
Resolution 12x2
Active Area (mm) 37.85x11.70
Dot Size 0.45x0.60
B/L color, LCD type B/L white, STN blue neg
Power supply 3V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 15
Pin Pitch 1.27mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 1.6"
Resolution 12x2
Active Area (mm) 37.85x11.70
Dot Size 0.45x0.60
B/L color, LCD type B/L white, STN blue neg
Power supply 3V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 15
Pin Pitch 1.27mm
Preferred - Not Preferred Preferred
