WL0F00101000JGAACSA00-FC

Picture of WL0F00101000JGAACSA00-FC Picture of WL0F00101000JGAACSA00-FC
TFT 10.1'' 1024x600, CAN CUSTOM ID & GPIO support, 450cd/m², Wide View Angle (IPS), Capacitive touch panel (GG)


DESCRIPTION



NEW 3nd generation 10.1” CAN BUS Smart Display which supports CUSTOMIZABLE CAN ID messages & GPIO.



WL0F00101000JGAACSA00-FC model is a 10.1 inch Smart Display CAN series TFT display which is running with CUSTOMIZABLE CAN ID &GPO support, command to render display content on the screen and return touch event data with protocol objects. This model is integrated with a standard 10.1 inch IPS TFT module WF101-1024600JL#0P8-FC and a 4-layers PCBA with built-in firmware code which is developed by Winstar RD team. This 10.1" Smart Display CAN series TFT is an easy-to-use product which allows customers to their own UI without writing a line of code in cost-effective way. This 10.1” Smart Display can use computer with USB2CAN dongle or Raspberry Pi (+PiCAN2) or even MCU scale like Arduino(+CAN adaptor) as HOST platform. Winstar already developed Windows Apps (GUI & GUI Builder) for Smart Display GUI design. Winstar GUI builder software is designed for customers to simulate their UI design in advance by using the drag-and-drop Widget preview function; furthermore, customers can create their ideal UI objects by themselves using this software then go simulation to check UI design without hardware module. Winstar GUI builder software is supporting Windows system only; it can fulfill What You See Is What You Get (WYSIWYG).

Winstar Smart Display Can Series is really a “smart” choose for customers. There are many important features and functions for this new released 10.1" smart display CAN TFT as below:

  • DC 12V working voltage
  • 10.1" WF101-1024600JL#0P8-FC IPS TFT
  • Power-On Self-Test & Splash screen
  • CAN bus communication Interface
  • Supports CUSTOMIZABLE CAN ID messages & GPIO
  • Built in flash memory, store the font and Object Dictionary Data
  • Supports Projected Capacitive touch screen (PCAP)
  • Long transmission distance
  • Strong anti-interference ability
  • Built-in Buzzer.
  • Supports Multi-master
  • Operating temperature -20℃~70℃
  • Design the UI without writing a line of code by Winstar GUI builder!

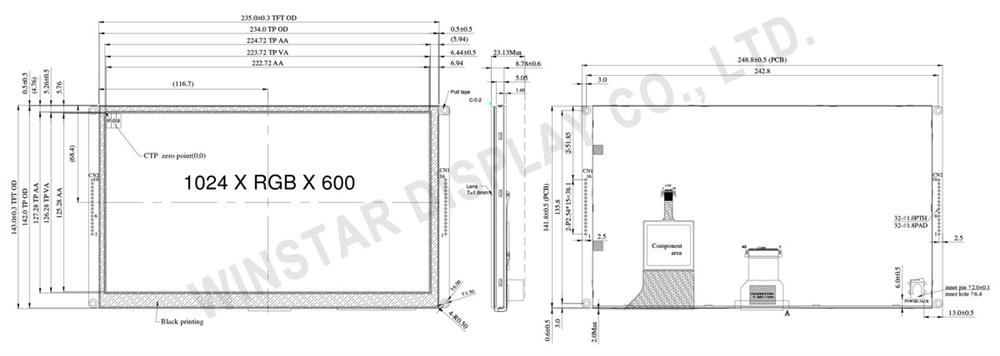

DRAWING





Bom

ItemDescription
LCM WF101-1024600JL#0P8-FC
PCBA SV100101000JA00N0100





SPECIFICATIONS



General Specifications

Mechanical Data

ItemStandard ValueUnit
LCD panel 235(W) x 143(H) x 8.78(D) mm
PCB 248.8(W) x 143(H) x 1.6(D) mm
Housing outline NA mm


General information

ItemStandard ValueUnit
Operating voltage 12 Vdc
Communication Interface CAN bus differential ± 3.3 Vpp
MCU STM32F746 N/A
Flash Memory 16 MB
SDRAM Frequency 166 MHz
LCD display size 10.1 inch
Dot Matrix 1024 x RGB x 600(TFT) dots
Module dimension 235(W) x 143(H) x 8.78(D) mm
Active area 222.72 (H) x 125.28(V) mm
Dot pitch 0.2175(W) x 0.2088(H) mm
LCD type LED, Normally White
View Direction 85/85/85/85
Aspect Ratio 16:9
Touch Panel With Projected Capacitive Touch Panel (PCAP)
Surface Glare


Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCC － 11.4 12 12.6 V
Supply LCM current I(mA) - - 435 - mA



Interface Pin Function

CON1 definition

PinSymbolFunctionRemark
1 +12V Power supply12V input Power
2 GND Power supply GND input Power
3 CAN_High CAN bus D+ I/O
4 CAN_Low CAN bus D- I/O
5   GND Power supply GND input Power
6 GND Power supply GND input Power


CON2 definition

PinSymbolFunction
1 VDD3V 3.3V power for JTAG interface
2 JTAG_SWCLK CLK pin for JTAG interface
3 GND GND for JTAG interface
4 JTAG_SWDIO Data pin for JTAG interface
5 NRST Reset pin for JTAG interface
6 GND GND



Display Usage



Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode (Node ID = 0x7B).

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.


Splash Screen

The default splash image is shown below:

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.


Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection



Example Screen Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.


Example Screen Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.


Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

SKU: WL0F00101000JGAACSA00-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€180.90
€177.90
€170.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€180.90 excl tax


DESCRIPTION



NEW 3nd generation 10.1” CAN BUS Smart Display which supports CUSTOMIZABLE CAN ID messages & GPIO.



WL0F00101000JGAACSA00-FC model is a 10.1 inch Smart Display CAN series TFT display which is running with CUSTOMIZABLE CAN ID &GPO support, command to render display content on the screen and return touch event data with protocol objects. This model is integrated with a standard 10.1 inch IPS TFT module WF101-1024600JL#0P8-FC and a 4-layers PCBA with built-in firmware code which is developed by Winstar RD team. This 10.1" Smart Display CAN series TFT is an easy-to-use product which allows customers to their own UI without writing a line of code in cost-effective way. This 10.1” Smart Display can use computer with USB2CAN dongle or Raspberry Pi (+PiCAN2) or even MCU scale like Arduino(+CAN adaptor) as HOST platform. Winstar already developed Windows Apps (GUI & GUI Builder) for Smart Display GUI design. Winstar GUI builder software is designed for customers to simulate their UI design in advance by using the drag-and-drop Widget preview function; furthermore, customers can create their ideal UI objects by themselves using this software then go simulation to check UI design without hardware module. Winstar GUI builder software is supporting Windows system only; it can fulfill What You See Is What You Get (WYSIWYG).

Winstar Smart Display Can Series is really a “smart” choose for customers. There are many important features and functions for this new released 10.1" smart display CAN TFT as below:

  • DC 12V working voltage
  • 10.1" WF101-1024600JL#0P8-FC IPS TFT
  • Power-On Self-Test & Splash screen
  • CAN bus communication Interface
  • Supports CUSTOMIZABLE CAN ID messages & GPIO
  • Built in flash memory, store the font and Object Dictionary Data
  • Supports Projected Capacitive touch screen (PCAP)
  • Long transmission distance
  • Strong anti-interference ability
  • Built-in Buzzer.
  • Supports Multi-master
  • Operating temperature -20℃~70℃
  • Design the UI without writing a line of code by Winstar GUI builder!



DRAWING





Bom

ItemDescription
LCM WF101-1024600JL#0P8-FC
PCBA SV100101000JA00N0100





SPECIFICATIONS



General Specifications

Mechanical Data

ItemStandard ValueUnit
LCD panel 235(W) x 143(H) x 8.78(D) mm
PCB 248.8(W) x 143(H) x 1.6(D) mm
Housing outline NA mm


General information

ItemStandard ValueUnit
Operating voltage 12 Vdc
Communication Interface CAN bus differential ± 3.3 Vpp
MCU STM32F746 N/A
Flash Memory 16 MB
SDRAM Frequency 166 MHz
LCD display size 10.1 inch
Dot Matrix 1024 x RGB x 600(TFT) dots
Module dimension 235(W) x 143(H) x 8.78(D) mm
Active area 222.72 (H) x 125.28(V) mm
Dot pitch 0.2175(W) x 0.2088(H) mm
LCD type LED, Normally White
View Direction 85/85/85/85
Aspect Ratio 16:9
Touch Panel With Projected Capacitive Touch Panel (PCAP)
Surface Glare


Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCC － 11.4 12 12.6 V
Supply LCM current I(mA) - - 435 - mA



Interface Pin Function

CON1 definition

PinSymbolFunctionRemark
1 +12V Power supply12V input Power
2 GND Power supply GND input Power
3 CAN_High CAN bus D+ I/O
4 CAN_Low CAN bus D- I/O
5   GND Power supply GND input Power
6 GND Power supply GND input Power


CON2 definition

PinSymbolFunction
1 VDD3V 3.3V power for JTAG interface
2 JTAG_SWCLK CLK pin for JTAG interface
3 GND GND for JTAG interface
4 JTAG_SWDIO Data pin for JTAG interface
5 NRST Reset pin for JTAG interface
6 GND GND



Display Usage



Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode (Node ID = 0x7B).

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.


Splash Screen

The default splash image is shown below:

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.


Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection



Example Screen Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.


Example Screen Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.


Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Products specifications
Brand Winstar
Size 10.1"
Resolution 1024x600
Active Area (mm) 222.72x125.28
Color Full Color
Power supply 12V
Display Interface CAN Bus
View Angle IPS
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 10.1"
Resolution 1024x600
Active Area (mm) 222.72x125.28
Color Full Color
Power supply 12V
Display Interface CAN Bus
View Angle IPS
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
